Product description
Leo - 100Wq65-15-5.5 - 5500 Watt - 7.5 Hp - Heavy Duty Sewage Submersible Pump - European Standard

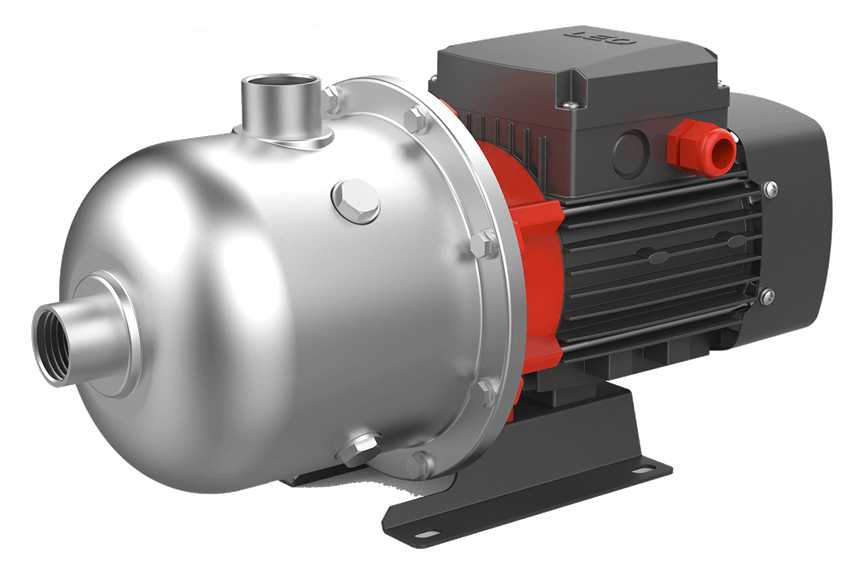

The LEO EDH Series is a heavy-duty, highly efficient horizontal multistage centrifugal pump designed for clean water transfer and pressure boosting. Engineered with a premium AISI 304 stainless steel body and internal components, this pump guarantees exceptional corrosion resistance, longevity, and hygienic water delivery.
Equipped with a high-performance copper-wound motor and built-in thermal protection (for single-phase models), the EDH series provides stable pressure and high flow rates. It is an ideal solution for applications requiring reliable water distribution with minimal noise and maximum durability.
Key Applications
-
Residential & Commercial: Household water supply, high-rise building water boosting, and centralized heating/cooling circulation.
-
Agriculture & Gardening: Greenhouse watering, garden irrigation, and field cultivation.
-
Industrial: Equipment support, pipeline pressurization, industrial mining water supply, and drainage systems.
-
Farming: Automated water systems for poultry raising and fish farming.
3. Technical Specifications

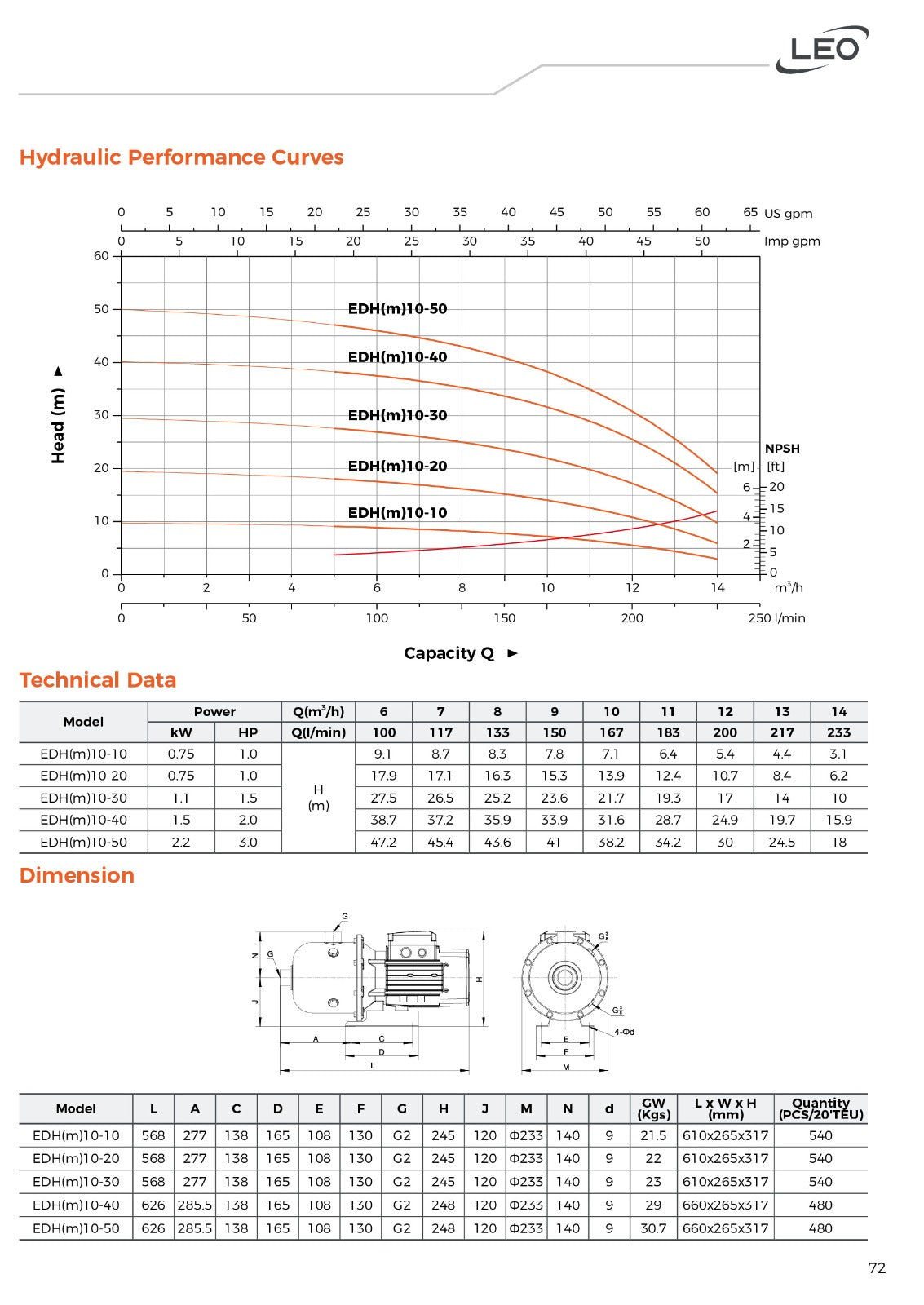

Technical Data & Performance Matrix
| Model | Power (kW) | Power (HP) | Max Head (m) | Max Flow (m3/h) | Max Flow (l/min) |
| EDH(m)10-10 | 0.75 | 1.0 | 9.1 | 14.0 | 233 |
| EDH(m)10-20 | 0.75 | 1.0 | 17.9 | 14.0 | 233 |
| EDH(m)10-30 | 1.1 | 1.5 | 27.5 | 14.0 | 233 |
| EDH(m)10-40 | 1.5 | 2.0 | 38.7 | 14.0 | 233 |
| EDH(m)10-50 | 2.2 | 3.0 | 47.2 | 14.0 | 233 |
Operating Limits
-
Max. Suction Lift: 8 meters
-
Max. Operating Pressure: 10 bar
-
Max. Inlet Pressure: Limited by maximum operating pressure
-
Liquid Temperature Range: Up to +85°C
-
Liquid pH Value Range: 4 to 10
-
Max. Ambient Temperature: Up to +40°C
-
Max. Altitude: Up to 1000 meters
Motor Specifications
-
Winding Material: 100% Copper winding
-
Protection Features: Built-in thermal protector (for single-phase models)
-
Insulation Class: Class F
-
Enclosure Protection Class: IP55
-
Efficiency Standard: IE2 motor standard (IE3 available upon request)

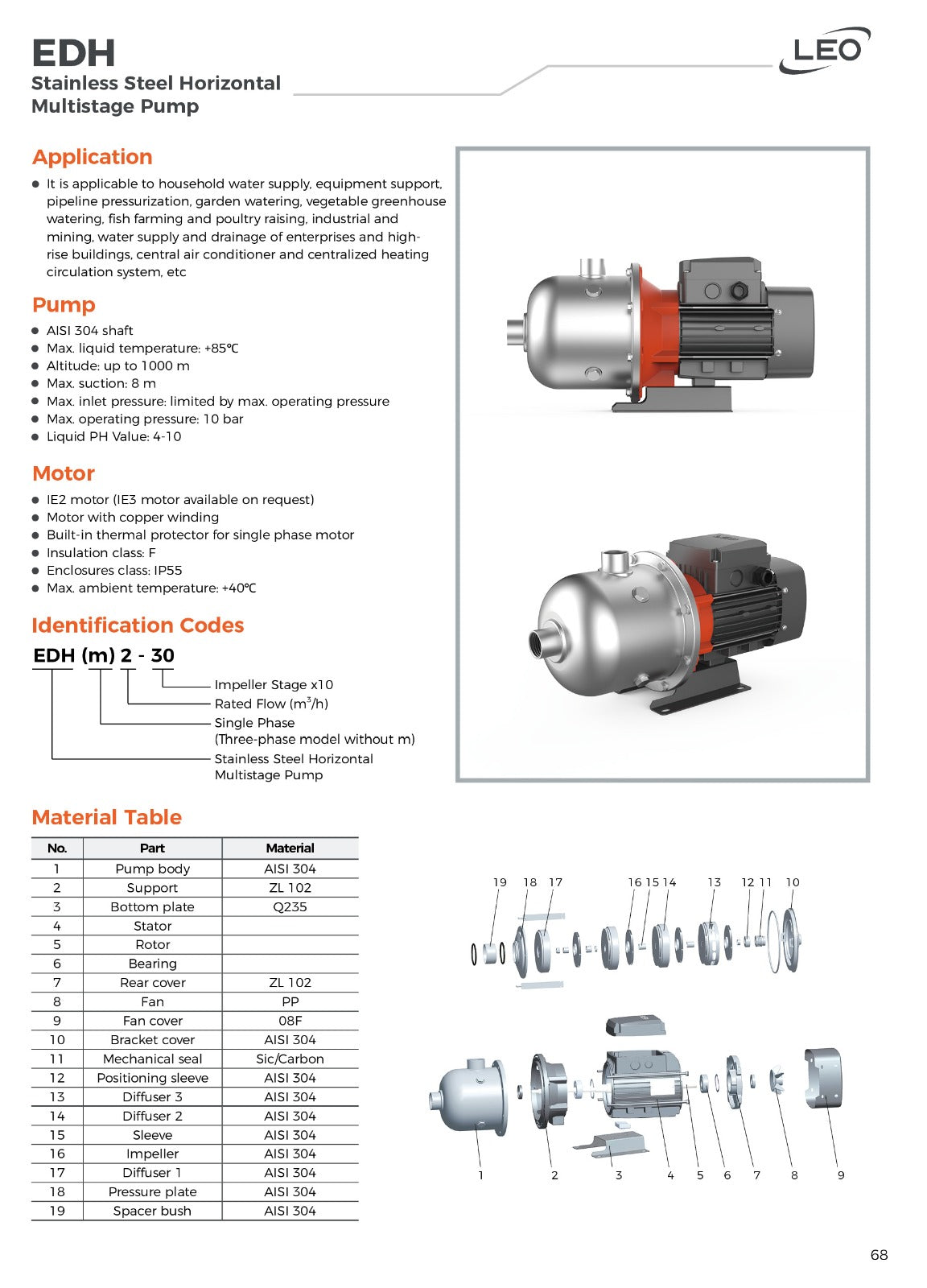

Premium Material Composition
-
Pump Body, Impellers, Diffusers & Shaft: AISI 304 Stainless Steel
-
Mechanical Seal: Silicon Carbide / Carbon (SiC/Carbon)
-
Support & Rear Motor Cover: Heavy-duty ZL 102 Aluminum Alloy
-
Bottom Base Plate: Q235 Steel
