LEO XHS10000 Self-Priming Centrifugal Pump 7.5kW / 10HP, 415V, 3" × 3", Semi-Open Impeller

LEO XHS10000 Self-Priming Centrifugal Pump – 7.5 kW / 10 HP

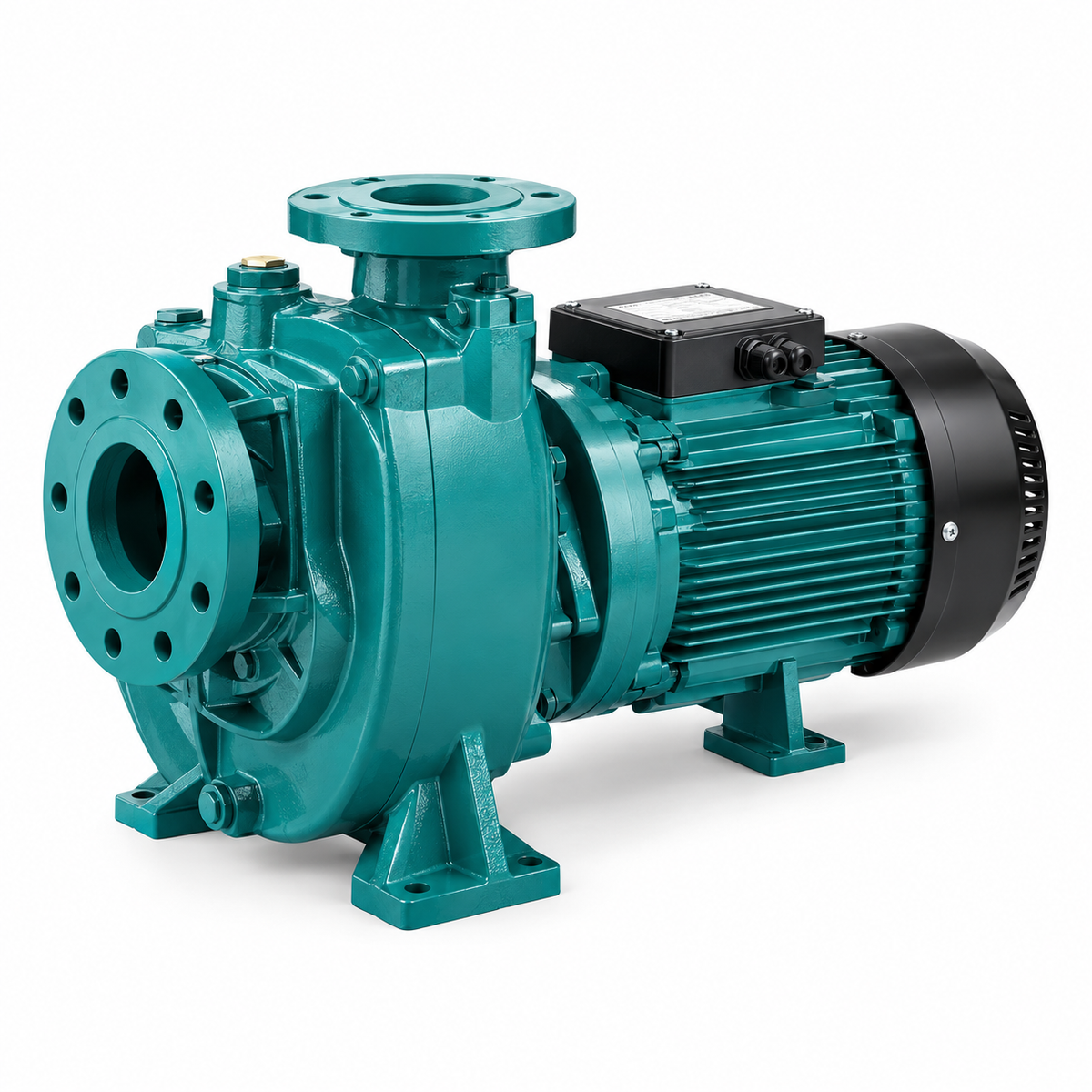

The LEO XHS10000 Self-Priming Centrifugal Pump is a three-phase industrial pumping solution designed for high-volume water transfer, agricultural irrigation, drainage, construction sites and wastewater handling. Featuring a semi-open impeller, a treated cast-iron pump body and an AISI 304 stainless-steel shaft, it is designed for demanding pumping applications where reliable hydraulic performance and practical maintenance are important.

Powered by a 7.5 kW (10 HP) motor, the XHS10000 is specified for a flow range of approximately 83–1,660 litres per minute and a corresponding hydraulic head range of approximately 33–10 metres. Actual flow and head depend on the operating point, pipework, suction conditions and total system resistance.

Key Features and Benefits

• Industrial pumping capacity: Designed for high-volume water transfer and suitable wastewater-handling applications.
• Self-priming design: Supports suction-lift operation within the specified installation limits; initial filling and priming procedures must follow the manufacturer's instructions.
• Semi-open impeller: Suitable for certain liquids containing small solid particles and short fibres, subject to the pump's permitted particle size and fluid conditions.
• Heavy-duty construction: Cast-iron pump body and support with special anti-rust treatment.
• Corrosion-resistant shaft: AISI 304 stainless-steel shaft.
• Three-phase electric motor: Rated at 7.5 kW / 10 HP; the linked product specification identifies a 415 V, 50 Hz supply.
• Motor protection: Class F insulation and IPX4 enclosure protection, as specified for the series.
• Serviceability: Designed for maintenance access and routine inspection of pump and motor components.

Technical Specifications

Hydraulic Performance Data

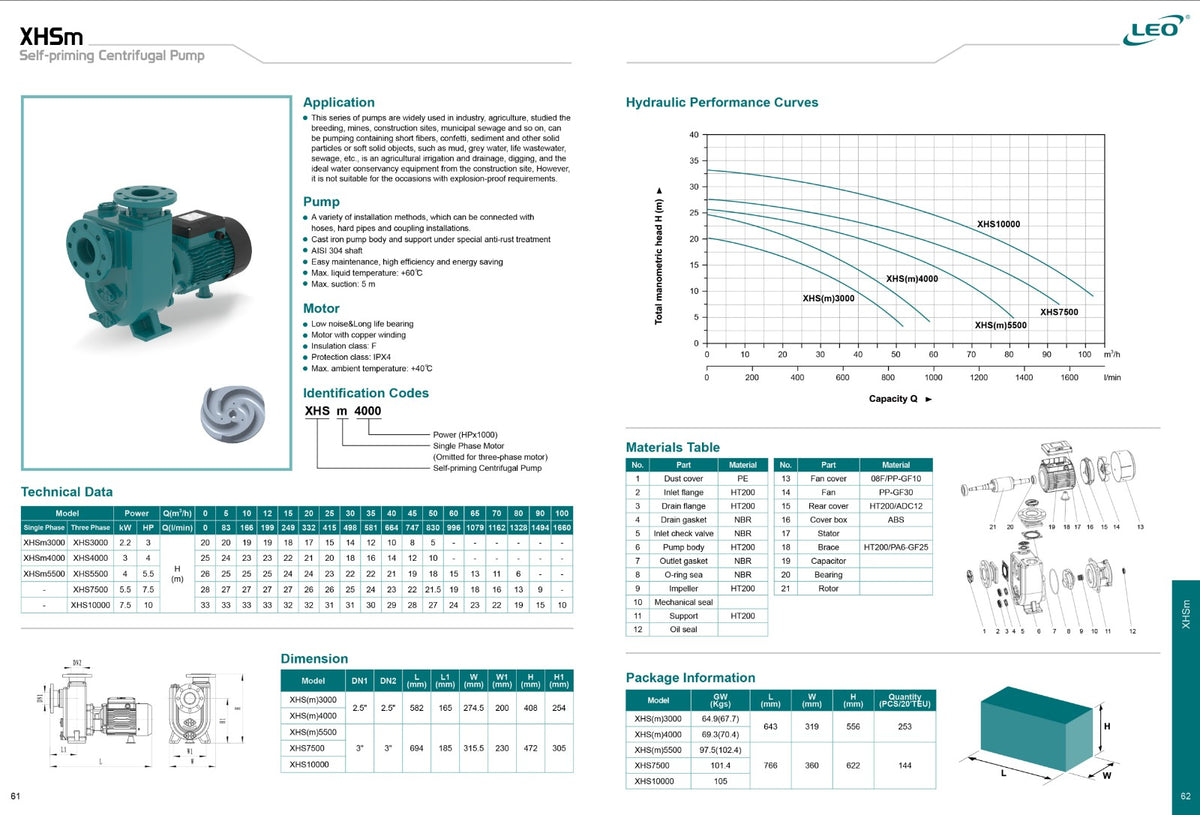

The manufacturer's XHS-series performance table provides the following head values for the XHS10000 model. Flow values are converted from cubic metres per hour to litres per minute using 1 m³/h = 16.667 L/min.

Performance note: The table above reproduces the published flow/head points with rounded flow conversions. The retailer lists the maximum flow as 1,660 L/min. The zero-flow head is a published performance-table value, not a recommended continuous operating condition. Select the pump using the manufacturer's complete curve and the required system duty point.

Construction Materials

Material designations are reproduced from the supplied series materials table. Confirm component-specific materials with the manufacturer if chemical compatibility or a regulated application is involved.

Dimensions and Packaging

Dimensions are taken from the shared XHS-series dimensional table; packaging measurements and gross weight should be reconfirmed before freight booking. Net product weight is not independently established by the supplied datasheet.

Applications

• Industrial water transfer and circulation
• Agricultural irrigation and drainage
• Construction-site dewatering and water management
• Wastewater and municipal drainage applications
• Greywater and sewage transfer where fluid conditions are compatible
• Handling liquids containing limited small solids, sediment or short fibres, within manufacturer-approved limits
• Suitable industrial and agricultural pumping installations using compatible hoses or rigid pipework

Installation and Operating Considerations

• Verify the available electrical supply, motor nameplate, phase, frequency and overload protection before installation.
• Follow the manufacturer's priming procedure and do not assume the pump can run dry.
• Keep suction piping airtight and appropriately sized; excessive suction losses can reduce performance.
• Do not exceed the 5 m listed suction lift or the 60°C maximum liquid temperature.
• Check the actual flow/head operating point against the pump curve before final selection.
• Confirm allowable solid size, fibre content, liquid chemistry and seal compatibility for the intended fluid.
• IPX4 is splash protection, not permission to submerge the motor.
• Do not use this pump in an area requiring explosion-proof equipment unless a separately certified configuration is confirmed.

Maintenance

• Inspect the pump for leakage and unusual vibration or noise.
• Check suction connections for air ingress.
• Inspect and clean the suction strainer, where fitted.
• Check the impeller and internal passages for accumulated debris.
• Inspect the mechanical seal, gaskets and pipe connections.
• Check electrical terminals, motor temperature and phase balance in accordance with qualified electrical maintenance procedures.
• Follow the manufacturer's maintenance intervals and service instructions.

Important Specification Notes

The linked retailer specifies 415 V and 50 Hz. The supplied LEO datasheet confirms the XHS10000 motor rating as 7.5 kW / 10 HP and supplies the hydraulic performance table. The series datasheet lists maximum ambient temperature as +40°C.

Flow, head and suction performance depend on installation and operating conditions. The published maximum flow and maximum head are not simultaneous guaranteed duty-point values. Confirm the required duty point, electrical configuration, included accessories, warranty and delivery details with the supplier before purchase.
