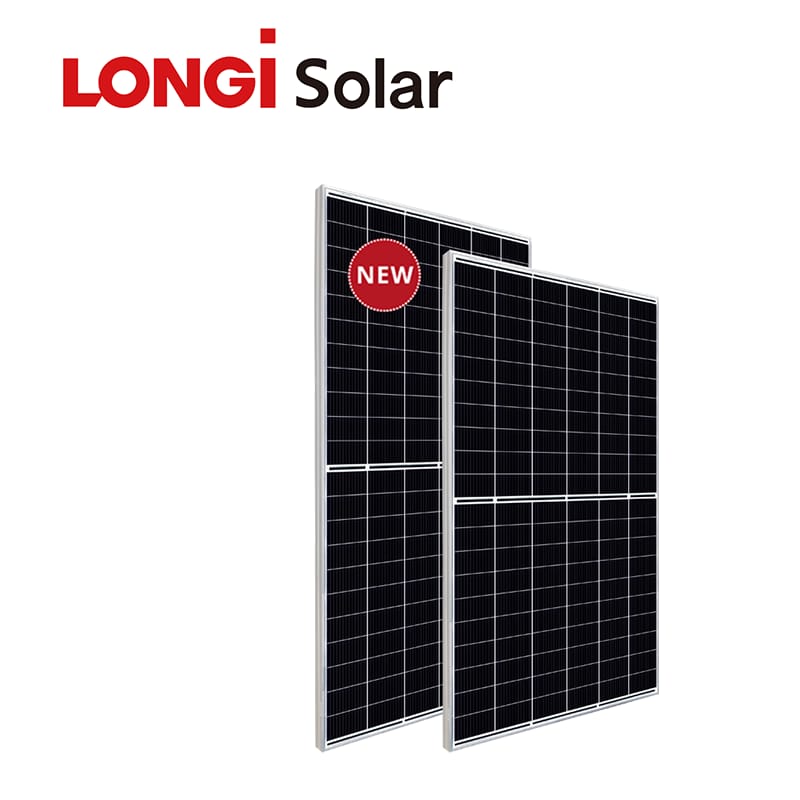

LONGI - SOLAR PANELS
100% Original Products.
Delivery In Karachi In 1 Working Day.
Out of Karachi in 3-5 Days.
Please provide WhatsApp enabled number for order confirmation.
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Your placement of order does not reserve the price on site nor is a confirmation of your order or inventory availablity.
\n
\n Cell Orientation
|
\n
\n 144 (6x24)
|
\n
\n Junction Box
|
\n
\n IP68, three diodes
|
\n
\n Output Cable
|
\n
\n 4mm², ±1200mm length can be customized
|
\n
\n Glass
|
\n
\n Single glass, 3.2mm coated tempered glass
|
\n
\n Frame
|
\n
\n Anodized aluminum alloy frame
|
\n
\n Weight
|
\n
\n 27.5kg
|
\n
\n Dimension
|
\n
\n 2278×1134×30mm
|
\n
\n Packaging
|
\n
\n 36pcs per pallet / 216pcs per 20' GP /936pcs per40' HC
|
\n
\n Model Type
|
\n
\n LR5-72HTH-560-580M
|
\n|||||
\n Maximum Power(Pmax/W)
|
\n
\n
\n
560
\n |
\n
\n
\n
565
\n |
\n
\n
\n
570
\n |
\n
\n
\n
575
\n |
\n
\n
\n
580
\n |
\n
\n
\n
585
\n |
\n
\n Open Circuit Voltage(Voc/V)
|
\n
\n
\n
51.61
\n |
\n
\n
\n
51.76
\n |
\n
\n
\n
51.91
\n |
\n
\n
\n
52.06
\n |
\n
\n
\n
52.21
\n |
\n
\n
\n
52.36
\n |
\n
\n Short Circuit Current(Isc/A)
|
\n
\n
\n
13.94
\n |
\n
\n
\n
14.01
\n |
\n
\n
\n
14.07
\n |
\n
\n
\n
14.14
\n |
\n
\n
\n
14.20
\n |
\n
\n
\n
14.27
\n |
\n
\n Voltage at Maximum Power(Vmp/V)
|
\n
\n
\n
43.46
\n |
\n
\n
\n
43.61
\n |
\n
\n
\n
43.76
\n |
\n
\n
\n
43.91
\n |
\n
\n
\n
44.06
\n |
\n
\n
\n
44.21
\n |
\n
\n Current at Maximum Power (lmp/A)
|
\n
\n
\n
12.89
\n |
\n
\n
\n
12.96
\n |
\n
\n
\n
13.03
\n |
\n
\n
\n
13.10
\n |
\n
\n
\n
13.17
\n |
\n
\n
\n
13.24
\n |
\n
\n Module Efficiency (%)
|
\n
\n
\n
21.7
\n |
\n
\n
\n
21.9
\n |
\n
\n
\n
22.1
\n |
\n
\n
\n
22.3
\n |
\n
\n
\n
22.5
\n |
\n
\n
\n
22.6
\n |
\n
\n Operational Temperature
|
\n
\n -40°C~+85°C
|
\n
\n Power Output Tolerance
|
\n
\n 0~3%
|
\n
\n Voc and Isc Tolerance
|
\n
\n ±3%
|
\n
\n Maximum System Voltage
|
\n
\n DC1500V(IEC/UL)
|
\n
\n Max Series Fuse Rating
|
\n
\n 25A
|
\n
\n Nominal Operating Cell Temperature
|
\n
\n 45±2°C
|
\n
\n Protection Class
|
\n
\n Class ||
|
\n
\n Fire Rating
|
\n
\n ULtype 1 or 2, IEC Class C
|
\n
